APFC Relays
- Home
- APFC Relays
EPCOS
BR 4000
Features:
- Step: 4 and 8 outputs
- Current Input: 1A or 5A
- Supply Voltage: 1Ph 230V AC (-20% to +10%)
- Measurement Voltage: 3Ph 2 wire 230V AC (-20% to +10%)
- Operating temperature: 0°C to 70°C.
- Compact 96 X 96 mm front fascia

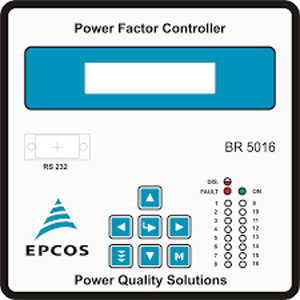

BR 5000
Features:
- Step: 8 and 16 outputs
- Current Input: 1A or 5A
- Supply Voltage: 1Ph 415V AC (-40% to +20%)
- Measurement Voltage: 3Ph 3 wire 415V AC (-40% to +20%)
- Operating temperature: 0°C to 70°C.
- Compact 144 X 144 mm front fascia

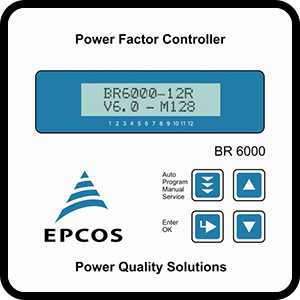

BR 6000
Features:
- Step: 6 and 12 outputs (in both relay and transistorised versions)
- Current Input: 1A or 5A
- Supply Voltage: 1Ph - 230V AC
- Measurement Voltage: 1Ph 30V - 525V Ac (L-N) or (L-L)
- Operating temperature: -20°C to 60°C.
- Compact 144 X 144 mm front fascia
BR 7000
Features:
- LCD full graphic display, BR7000-HD with OLED display
- Operating voltage: 110 … 230 V AC
- Measurement voltage range: 3 x 30 … 440 V AC (L-N) / 50 ... 760 V AC (L-L)
- Measuring current: 3 x X:1A / X:5A
- Fundamental frequency: 50 and 60 Hz
- 2 isolated interfaces RS485
- 3 additional independent alarm/message relays
