Beluk

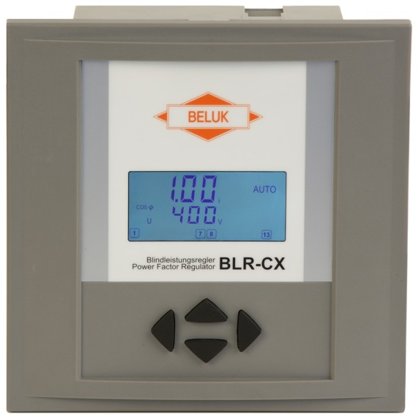

Power Factor Control Relay BLR-CX
Microprocessor controlled power factor controller with 1-phase measurement system
- Start menu for easy commissioning
- Automatic detection and correction of the phase of current and voltage connection
- Fully-automatic c/k-value setting, self adapting, connection of different capacitor step sizes possible
- Automatic detection and usage of the optimum capacitor step
- Switching programs: Best Fit, LIFO, manual mode, combifilter, progressive
- 1-phase measurement system also suitable for non-sinusodial currents and voltages
- Voltage measuring 90 – 550V, 45 – 65Hz
- Current measuring 15mA – 5A, suitable for CT x/1A und x/5A
- Display of all important grid and system parameters

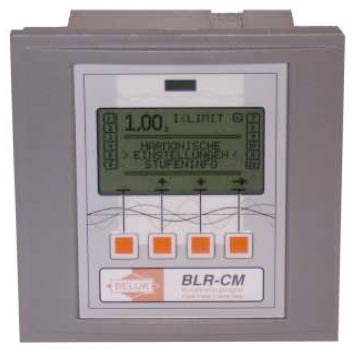

Power Factor Control Relay BLR-CM
Microprocessor controlled power factor controller with 1-phase measurement system and display of measurement values
- Full-automatic c/k-value setting, self adapting (not possible for dynamic steps), connection of different capacitor step sizes possible
- Automatic detection and usage of the optimum capacitor step
- Manual mode possible
- Multiple connection types possible through adjustable phase compensation angle
- Capable for 4-quadrant operating
- Individually configurable discharging time allows quicker switching time
- 1-phase measurement system also suitable for non-sinusodial currents and voltages
- Graphical LCD for display of step status, measurement values and system data
- Measurement display for U, I, P, Q, S, THD U, THD I, ΔQ, F, T
- Harmonics measurement for voltage and current up to the 31. order

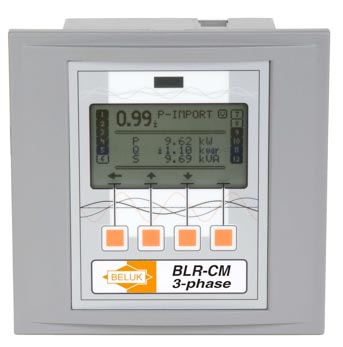

Power Factor Control Relay BLR-CM 3-phase
Microprocessor controlled power factor controlled with 3-phase measurement system and display of measurement values
- Full-automatic c/k-value setting, self adapting, connection of different capacitor step sizes possible
- Capacitors and detected or programmed with values in all three phases. This allows using single-phase or three-phase capacitors in any sequence
- Automatic detection and usage of the optimum capacitor step
- Manual mode possible
- multiple connecting types possible through adjustable phase compensation angle
- Capable for 4-quadrant operation
- Individually configurable discharging time allows quicker switching time
- 3-phase measurement system also suitable for non-sinusodial currents and voltages
